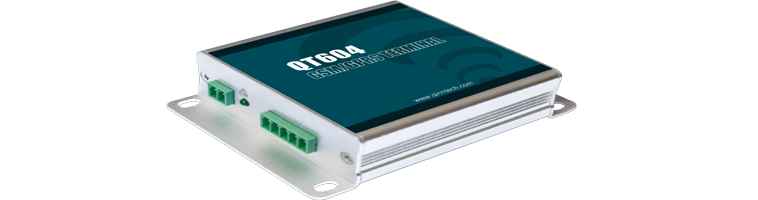

QT-604

Low Power GSM/GPRS Terminal for remote data acquisition

This tiny, low cost, low power GSM/GPRS terminal is a perfect choice for data capture and communication from remote devices on RS232 serial port. Ability to go on to low power modes makes this device ideal for battery powered remote monitoring applications.

RS232 port for serial data acquisition
Sleep mode and power off mode for low power consumption
Support TCP/IP, HTTP, FTP and SMTP protocols for data communication
Customizable firmware
RTC with battery backup
Low cost , Low power and Small form factor.
Rugged and stylish aluminum enclosure

GSM 850 / 900 / 1800 / 1900MHz GPRS Class 10
Multi-slot class 10 (4 Down; 2 Up; max.5) Max BR Download 85.6 Kbps Coding Scheme CS1-CS4
Ultra Low Consumption:1.0mA@sleep mode(DRX9)
Operating Temperature: -40 to +85�C
Sensitivity: -109dBm (850 / 900MHz), -108dBm (1800 / 1900MHz)
ARM controller with 1MB Flash, and 256KB RAM
One RS232 port
One TTL UART for debug
9-24V DC input power

Customizable firmware based on project requirements
Communication of data to server on specific events or on configured intervals - Storing and forwarding of data in case of communication failures
Monitors serial port and send data received on serial port to the server on TCP/IP,HTTP or FTP protocols
Send data or alerts to one or more numbers on receipt of data at serial port.
Continuously Monitor serial port and send data received on serial port to the server on TCP/IP,HTTP or FTP protocols
Get into very low power sleep mode and wake up on receipt of data at Serial port or on configured time intervals or on incoming call or SMS messages.
Completely get into power of mode and wake up defined time interval for maximum power savings.
Storing and forwarding of data in case of communication failures
Facility to store mobile numbers in different groups for authorization and SMS alerts
Configuration of parameters via serial port or remotely by SMS or from the Server
Watchdog timer
Over the air firmware update

Remote Data Acquisition
Easily make any device capable of communication using GSM/GPRS network
Integrate with any data logger for taking data to the cloud or web/centralized servers
Make your device capable of sending alert/information messages to one or more mobile numbers.
Make your devices communicate to you on Email.
