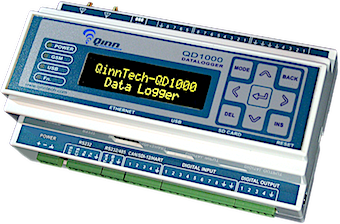

QD-1000

Full-fledged Data Logger with GSM/GPRS and GPS

High end Data Logger cum Remote Terminal Unit(RTU)

High Accuracy Analogue Inputs

High capacity Flash, SD card and USB support for data logging

RS232 and RS485 ports for remote data aquisition

Optional SDI, HART and CAN ports

High quality OLED display and Keypad

Easily configurable automation logic using simple logical functions

GPS for location infomration and time sychronization

GSM/GPRS Specifications

GSM 850/900/1800/1900MHz
GPRS Class 10
Multi-slot class 10(4 Down; 2 Up; max.5)
Max BR Download 85.6 Kbps
Coding Scheme CS1-CS4
Ultra Low Consumption：1.0mA@sleep mode(DRX9)
Operating Temperature：-40 ~ +85℃
Sensibility：-109dBm(850/900MHz)
-108dBm(1800/1900MHz)

GPS Specifications

Ublox Max-7 Module
56 Channels,GPS L1C/A,SBAS L1C/A,QZSS L1C/A
Cold Start 30 s,Warm Start :28 s, Hot Start :1s ,Aided Starts 5 s,
Tracking & Navigation -160 dBm ,Reacquisition -160 dBm
Coding Scheme CS1-CS4
Sensitivity:
- Cold Start -147 dBm, Warm Start -148 dBm, Hot Start -155 dBm
Frequency of time pulse signal 0.25 Hz … 10 MHz (configurable)
Max navigation update rate 10 Hz
Velocity accuracy 0.1 m/s
Heading accuracy 0.5 degrees

Processor	ARM Cortex M4F at 120Mhz 150DMIPS performance
Memory	1MB Flash, 256 KB RAM 6KB EEPROM 2KB FRAM,Expandable upto 16KB
External Memory	Upto 16MB serial Flash, Expandable upto 64 MB Micro SD Card upto 32GB USB OTG Compatible to standard USB drives
Communication Ports	10/100 Ethernet(MAC) Port,PHY with IEEEE 1588 PTP hardware support Two RS232 Ports One RS485 Port One SDI port (Optional) One HART Port (Opetinal) One CAN Port (Optional)
Display & Keyboard	16 x 2 OLED display 3 x 3 Keypad
RTC	Real Time clock with Battery Backup and calendar
Analogue Inputs	8 High Accuracy Analogue Inputs 24 bit Resolution Configurable for 0-5 Volts, 0-10 Volts or 4-20mA current loop.
Digital Inputs/Ouputs	8 Digital input ports Option for potential free or Voltage 8 digital output ports - open collector
LED indication	LED indication for Power, GSM Status, USB Detect and Function/Error
Power Supply	9 to 24V DC input Voltage

Remote Data Acquisition	Continuous data capture from analog inputs Monitor serial ports on data send by devices connected to it Act as a master device and capture data from one or more devices connected to it on its RS232/RS485 ports. Supports standard protocols like MODBUS or proprietary protocols for master slave communication. The firmware can be customised to support proprietary protocols
Data Logging and Communication	Log data captured on predefined intervals Copy data to SD card in required format Copy data to external USB drive Communicate data to the server through GSM/GPRS or Ethernet LAN Supports various protocols like TCP/IP, HTTP, FTP etc for communication to Server Supports standard MQTT protocol for M2M Communication
Remote Monitoring	Continuously monitor upto 8 digital inputs Configure any digital inputs as pulse counters Configure alerts on changes of digital inputs to server or to configured mobile numbers as SMS alerts Configurable maximum and/or minimum threshold limits for analog inputs Configure alerts on crossing thresholds to server or as SMS alerts to configured mobile numbers
Automation and Remote Control	Configure Digital Output on Automatic or manual mode Automate operation of Digital Output for each day of week Easily configure complicated automation logic based on time, DI or DO status, pulse counters etc. Operate Digital output ports remotely from server or via SMS commands from authorized mobile numbers. Configure alerts to Server or mobile numbers on changes of Digital outputs
Configuration	Configure Terminal using simple windows application Optional embedded http stack for configuration through Ethernet port Remote configuration using SMS commands from Authorized numbers Remote configuration through MQTT broker Configuration through HTTP or TCP/IP from Server
